19寸21.5寸23.6寸电容屏投射式5点10点多点触摸电容屏厂家供应

  • 980.00元/台
  • 5219
  • 740
  • 5219
  • 广东广州市萝岗区广州市萝岗区科学城光谱西路3号研发厂房5楼
  • 暂无

联系人:李先生 电话:13609042019 020-34720570-8012
QQ:859069700www.gzyulian.comwww.mapletouch.com
可按客户要求订制或OEM
10.4,12,15,17,18.5,19,21.5,22,23.6,26,32,42,,46,55,65,70寸
广州市宇联电子科技有限公司/广州市美博电子科技有限公司
MapleTouch多点触摸一体机投射式电容屏10寸12寸15寸15.6寸17寸18.5寸19寸22寸18.5寸21.5寸23.6寸24寸27寸电容屏多点触摸2点4点5点10点触摸电容屏/电容屏平板电脑/电容屏触摸一体机/电容屏触摸显示器
MapleTouch宇联触控MP6-126/MP6-156/MP6-176/MP5-155/MP5-125/MP5-175/PC6-106/PC6-126/PC6-156/PC6-176/PC6-196W/PC6-226W/YL5-105/YL5-125/YL5-155/YL5-175/YL5-195W/YL5-225W/QM5-105/QM5-125/QM5-155/QM5-175/QM5-195W/QM5-225W/QC6-106/QC6-126/QC6-156/QC6-176/QC6-196W/QC6-226W/MP6-166/POS6-156/POS5-155

Dimensions/尺寸规格19"电容屏
Structural/结构GG
Drive form/驱动方式COB
Rati/比例4:3
Lens OD/面板外形421mm*346mm*1.1mm
Lens VA/面板视窗377.32mm*302.06mm
Sensor OD/功能片外形402.32mm*330.06mm*1.1mm
Thickness/产品厚度2.4mm
Surface hardness/表面硬度6H
Transparency/透光度>90%
Operating temperature/工作温度-30℃~+75℃
Storage temperature/保存温度-40℃~+85℃
Relative Humidity/s湿度90% at 60℃
Linearity/线性度1PT:+/-1mm,10PT:+/-2.5mm
Touch life/触摸寿命>300,000,000 times
Max. Resolution/最大分辨率4096×4096 (Automatic matching )
Max. Support Points/最大支持点数Max,10 points
Control Type/控制器类型PCBA control board
Connector Type连接方式USB
Interface to Host/Master(主机接口)USB, 4 wire, 2.0 Full speed
Supply Voltage/工作电压USB 5VDC
Power Consumption/功率消耗Active Mode:<30mA,Idle Mode:5mA
Oscillator Frequency/振荡频??12MHz
Response Time/反应时间<10ms
Min. Report Rate/读取速度10PT: 80Hz
Max. operating frequency/最大工作频率100 MHz
ESD.Air discharge/抗静电.空气放电8KV
ESD.Contact discharge/抗静电.接触放电4KV
Operating system/运行系统Windows7、Windows8、Windows XP……
Adapter ripple /适配器纹波Vpp<50mv
21.5"电容屏
Dimensions/尺寸规格21.5"电容屏
Structural/结构GG
Drive form/驱动方式COB
Rati/比例16:9
Lens OD/面板外形516mm*321.8mm*2.0mm
Lens VA/面板视窗480mm*271.8mm
Sensor OD/功能片外形508mm*303.8mm*1.1mm
Thickness/产品厚度3.3mm
Surface hardness/表面硬度6H
Transparency/透光度>90%
Operating temperature/工作温度-30℃~+75℃
Storage temperature/保存温度-40℃~+85℃
Relative Humidity/s湿度90% at 60℃
Linearity/线性度1PT:+/-1mm,10PT:+/-2.5mm
Touch life/触摸寿命>300,000,000 times
Max. Resolution/最大分辨率4096×4096 (Automatic matching )
Max. Support Points/最大支持点数Max,10 points
Control Type/控制器类型PCBA control board
Connector Type连接方式USB
Interface to Host/Master(主机接口)USB, 4 wire, 2.0 Full speed
Supply Voltage/工作电压USB 5VDC
Power Consumption/功率消耗Active Mode:<30mA,Idle Mode:5mA
Oscillator Frequency/振荡频??12MHz
Response Time/反应时间<10ms
Min. Report Rate/读取速度10PT: 80Hz
Max. operating frequency/最大工作频率100 MHz
ESD.Air discharge/抗静电.空气放电8KV
ESD.Contact discharge/抗静电.接触放电4KV
Operating system/运行系统Windows7、Windows8、Windows XP……
Adapter ripple /适配器纹波Vpp<50mv
23.6"电容屏
Dimensions/尺寸规格23.6"电容屏
Structural/结构GG
Drive form/驱动方式COB
Rati/比例16:9
Lens OD/面板外形648mm*392mm*2.0mm
Lens VA/面板视窗600mm*335.5mm
Sensor OD/功能片外形628mm*372mm*1.1mm
Thickness/产品厚度3.3mm
Surface hardness/表面硬度6H
Transparency/透光度>90%
Operating temperature/工作温度-30℃~+75℃
Storage temperature/保存温度-40℃~+85℃
Relative Humidity/s湿度90% at 60℃
Linearity/线性度1PT:+/-1mm,10PT:+/-2.5mm
Touch life/触摸寿命>300,000,000 times
Max. Resolution/最大分辨率4096×4096 (Automatic matching )
Max. Support Points/最大支持点数Max,10 points
Control Type/控制器类型PCBA control board
Connector Type连接方式USB
Interface to Host/Master(主机接口)USB, 4 wire, 2.0 Full speed
Supply Voltage/工作电压USB 5VDC
Power Consumption/功率消耗Active Mode:<30mA,Idle Mode:5mA
Oscillator Frequency/振荡频??12MHz
Response Time/反应时间<10ms
Min. Report Rate/读取速度10PT: 80Hz
Max. operating frequency/最大工作频率100 MHz
ESD.Air discharge/抗静电.空气放电8KV
ESD.Contact discharge/抗静电.接触放电4KV
Operating system/运行系统Windows7、Windows8、Windows XP……
Adapter ripple /适配器纹波Vpp<50mv
Front-15inch-1

Side-15inch-1

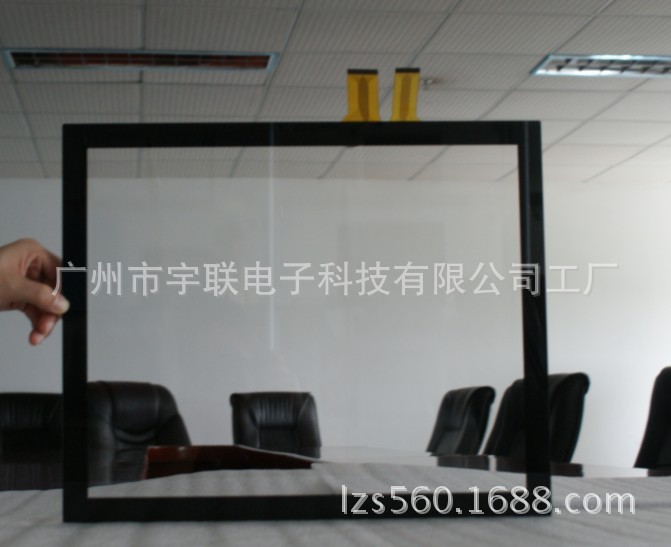

Front-19inch-3

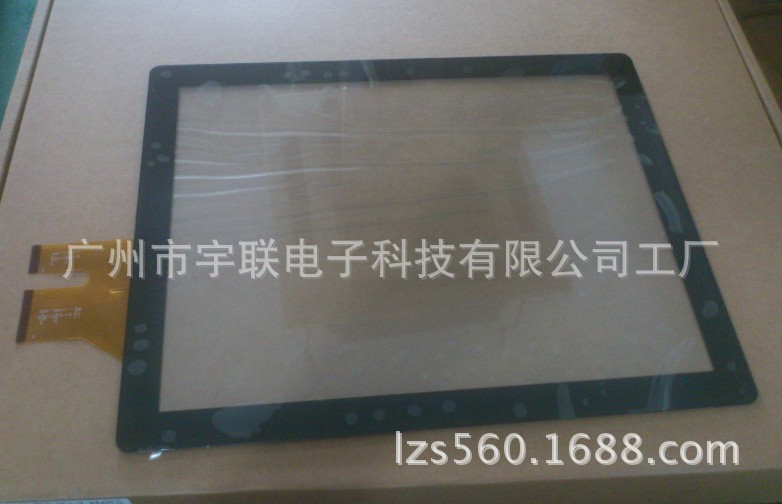

Front-19inch-1

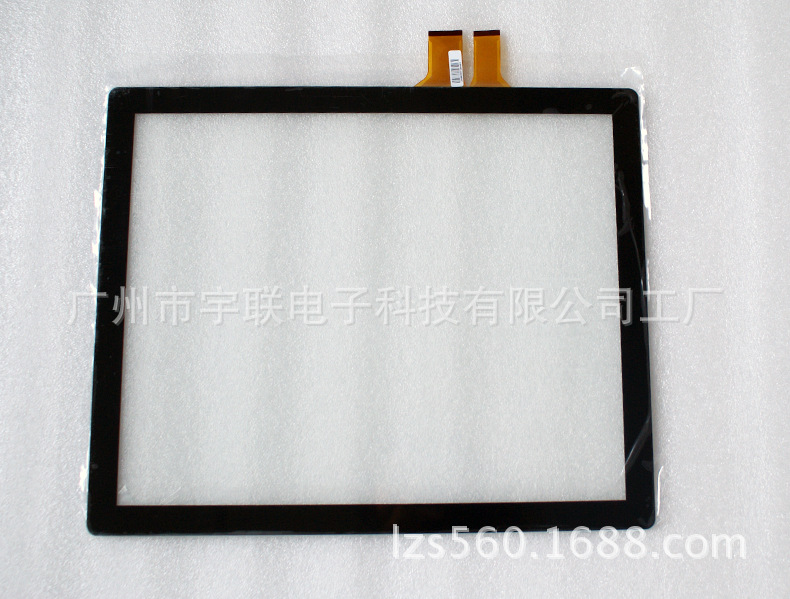

Front-18.5inch

21

21.5寸电容屏

19寸电容屏

19

17寸电容屏

15寸电容屏0

15寸电容屏

电容屏控制器

17

15

18.5寸电容屏

联系人:李先生 电话:13609042019 020-34720570-8012
QQ:859069700www.gzyulian.comwww.mapletouch.com
可按客户要求订制或OEM
10.4,12,15,17,18.5,19,21.5,22,23.6,26,32,42,,46,55,65,70寸
